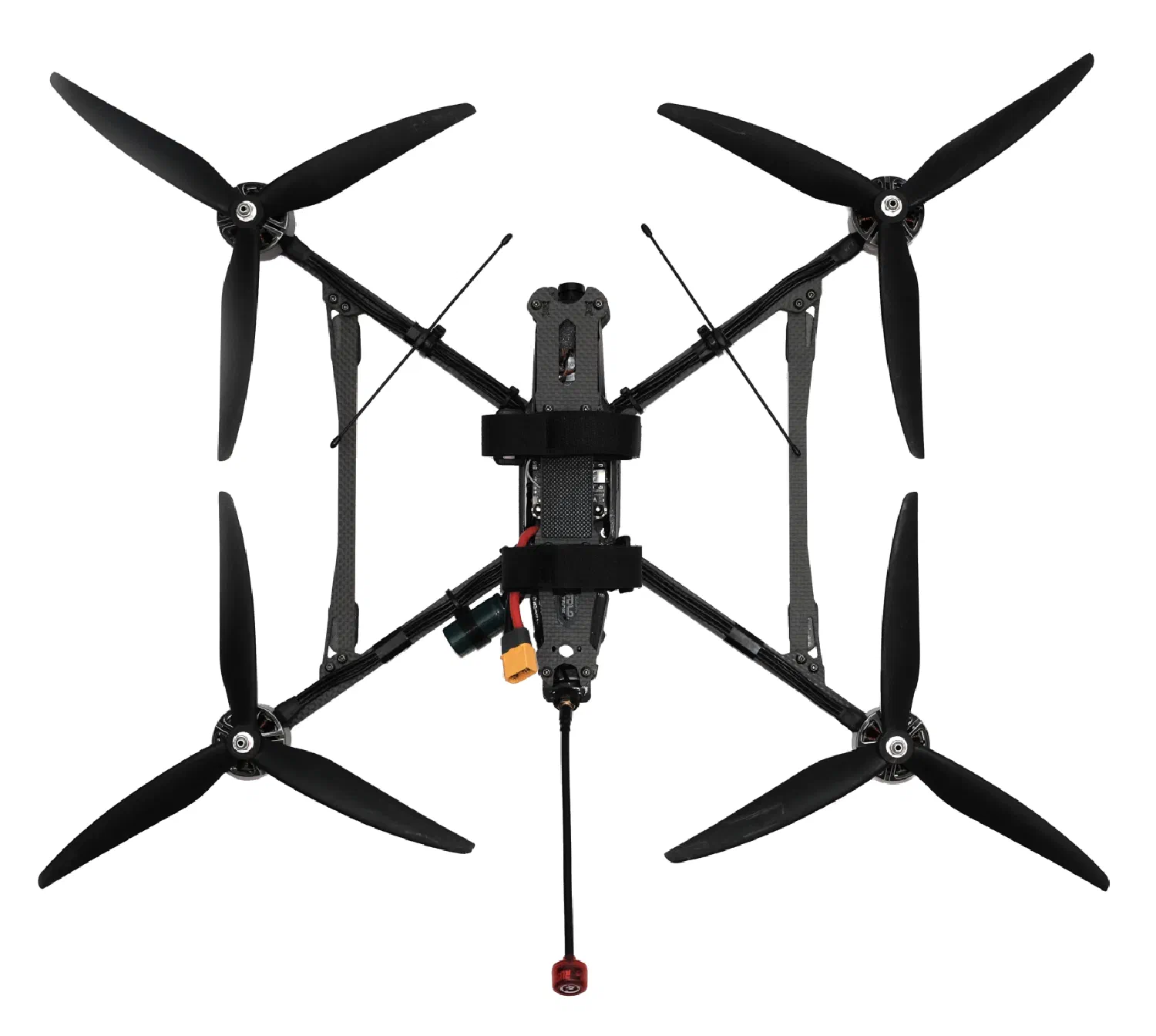

10 Inch FPV Drone
10" FPV drones have become prolifically used on the modern battlefield, they have become the goto platform for long range and weight capacity. After basic training with a 5/7/8 inch drone the 10" flies almost identically and can be picked up very easily by most pilots.
Cheap, adaptable, quick to repair and a large supply chain the 10" has become the size most pilots think of when you say “fpv drone”. Firefly is able to produce 10" drones in high volume with quick turnaround times, with high quality and manufacturing consistency.
Overview
The 10" is the workhorse. It balances range, payload and cost better than any other size, and because it handles like the smaller drones, crews can convert onto it with very little extra training.
Firefly manufactures the 10" in volume in the UK. Every airframe is built to the same specification, so spares, batteries and training are interchangeable across your whole fleet.
Key Features
- 1-5kg payload: Carries heavy cameras, sensors, communications equipment and mission payloads.
- Long range and endurance: Large propellers and high capacity batteries for extended missions.
- Simple conversion training: Flies almost identically to the 5" and 7", so pilots adapt quickly.
- Rugged and repairable: Carbon fibre frame, replaceable arms and common parts for rapid field repair.
- High volume production: Consistent quality and fast delivery in large quantities.
- IR and thermal ready: Full day and night capability with infrared and thermal cameras.
- Open firmware: Betaflight, iNav or Ardupilot, configured and tested by us.
Configurations
| Option | Choices |
|---|---|
| Video system | Analog, digital HD |
| Camera | Standard FPV, low-light, IR / thermal |
| Control link | ELRS, Crossfire, others on request |
| Flight controller | Betaflight, iNav, Ardupilot |
| Battery | 6S to 12S Li-ion or LiPo, high capacity or high output |
| Accessories | Camera gimbal, DJI / FPV dropper, GPS, AI tracking module |
Typical Specifications
| Frame size | 10" (approx. 400 to 450mm wheelbase) |
| Role | Long range, heavy payload, training |
| Payload | 1 to 5kg |
| Flight time | Approx. 15 to 30 minutes depending on load and battery |
| Firmware | Betaflight / iNav / Ardupilot |
Final specifications depend on the configuration selected. Contact us for a confirmed data sheet.
Applications
- Long range ISR: Extended observation with IR and thermal cameras.
- Payload delivery: Supplies, communications equipment and mission specific loads.
- Conversion training: The final step in the 5" to 7" to 10 inch progression.
- Relay and communications: Carrying repeaters and mesh equipment to elevated positions.
Add-ons from the Firefly Range
- Vulcan EW FPV: Our advanced 10" with on-board Jetson Nano, AI target tracking and full operation in RF denied environments.
- AI Tracking & Autonomous Flight: Real-time object detection running on the drone, with no connection to the ground.
- Camera Gimbal, DJI Dropper System and FPV Dropper System: Built by us, with custom logic available.
- Bunker-Link and Ground Station Antenna: Control from a protected position at extended range.
- DarkLake and MissionLink: Live tracking, video sharing and audited access for stakeholders.
Why Firefly
- British designed and built, with a diversified supply chain.
- High volume, short lead times, consistent build quality.
- Complete ecosystem: drone, training, control, and management software from one supplier.
- Customisation on request.
Get in Touch
To discuss quantities, lead times, configurations or a training package, email [email protected].
